General Products, LED Sheet
CL-LSH-800-4824-RGBW

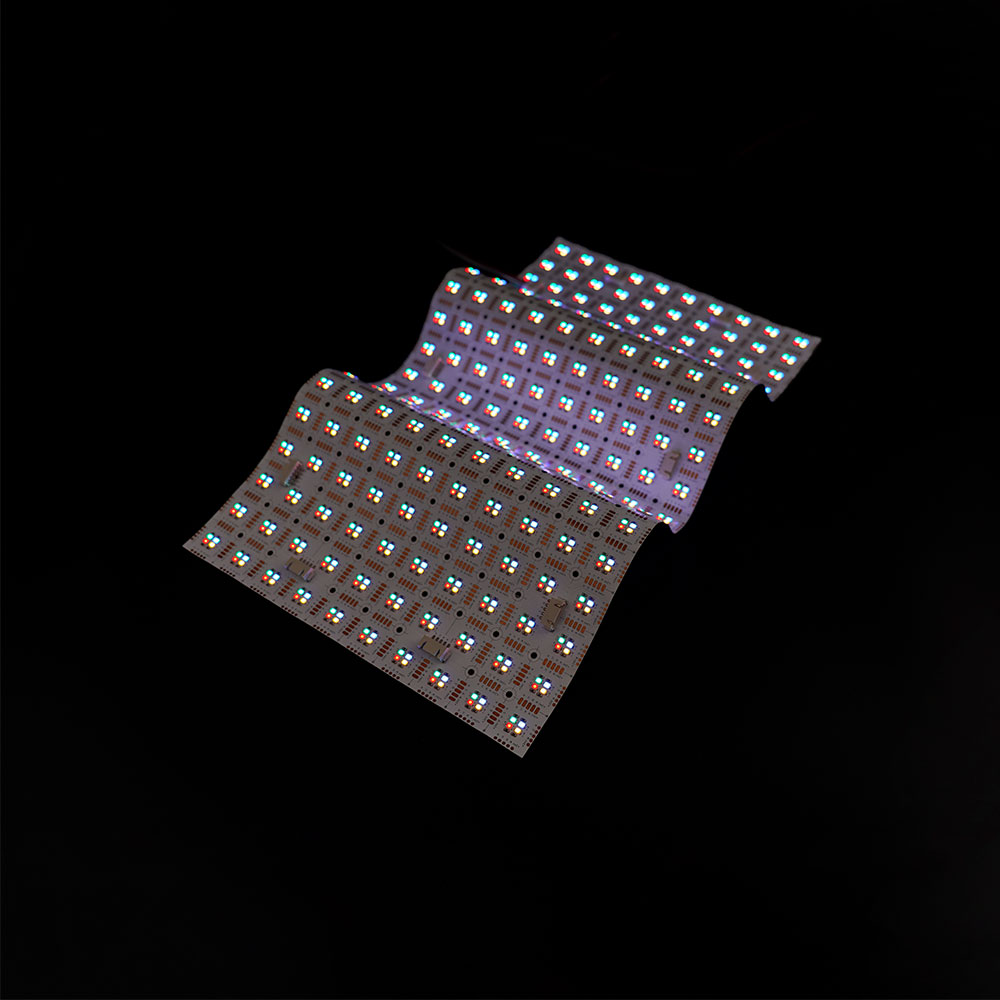

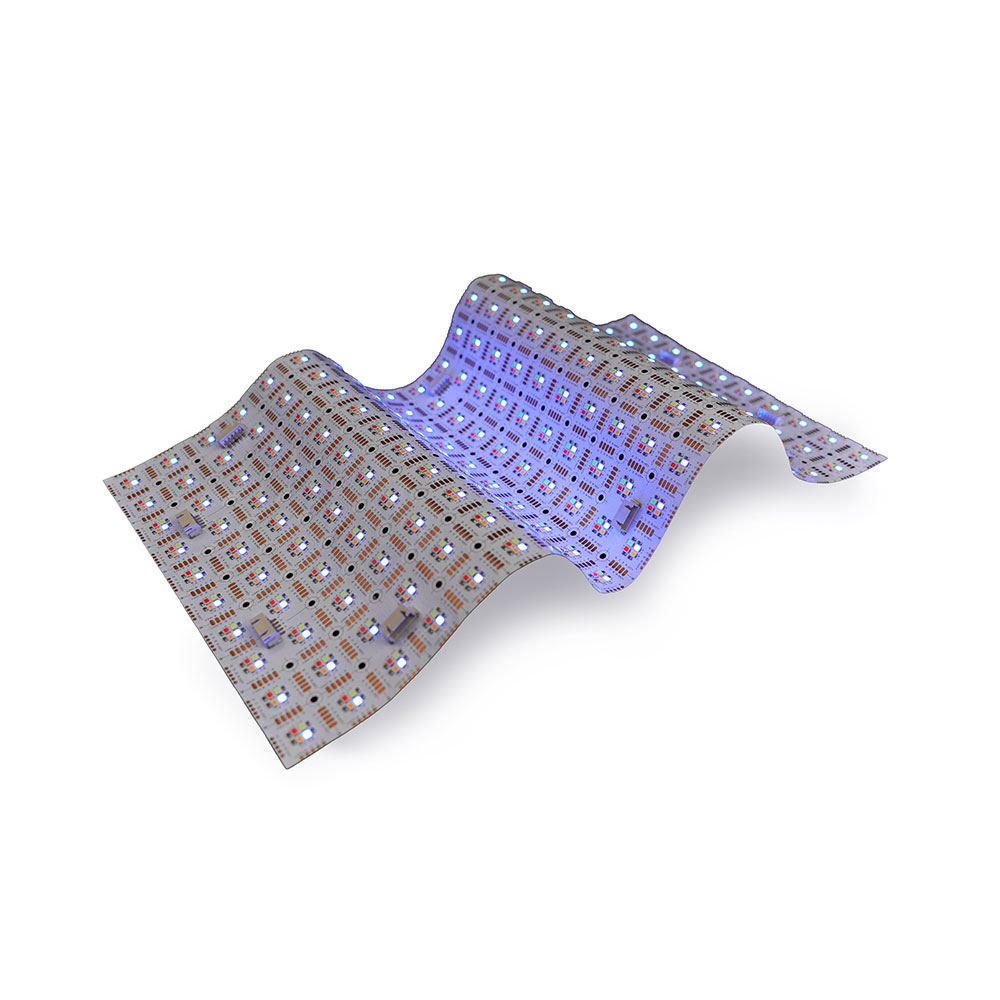

LED Sheet – 480x240mm – RGB + 3000K
- 24VDC Input
- Power: 24W
- 1176lm White
- 800 x SMD2835/sheet

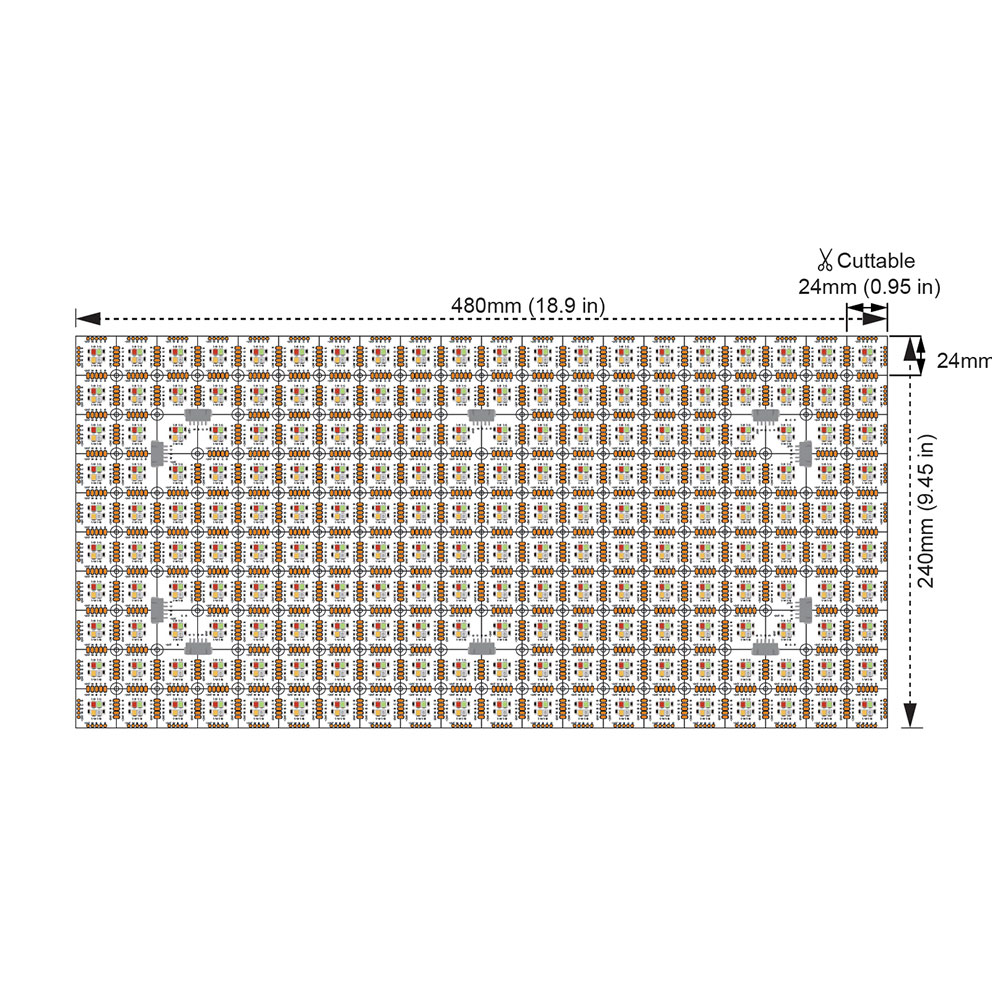

- 480mm (L) x 240mm (W)
- RGB+ 3000K Warm White
- CRI > 90
- Dry Location
- Class 2
Available Connectors:
- CL-LSH-5P-BBW6 ~ Double head connector with 6cm wire, 20Awg, 5-pin
- CL-LSH-5P-BBW30 ~ Double head connector with 30cm wire, 20Awg, 5-pin
- CL-LSH-5P-XBW30 ~ Single head connector with 30cm wire, 20Awg, 5-pin
