General Products, LED Sheet
CL-LSH-784-4824-TW

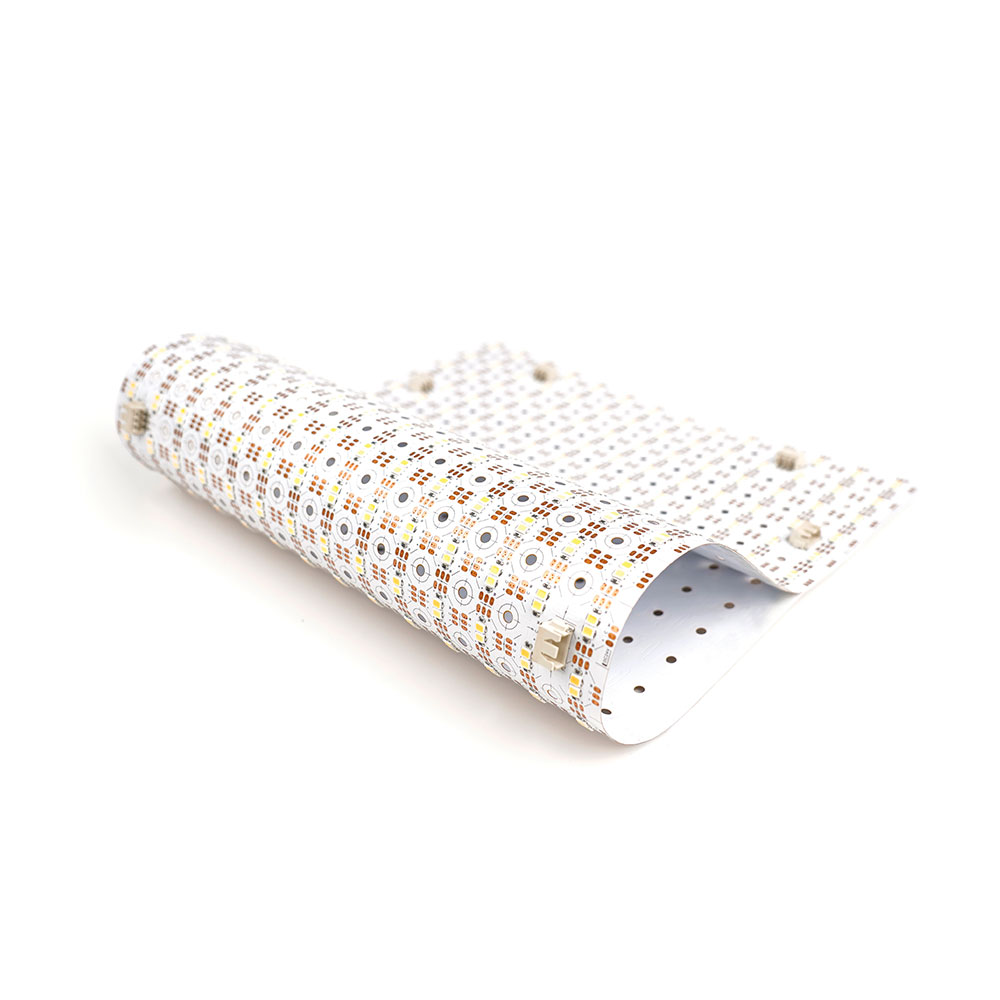

LED Sheet – 480x240mm – Tunable White
- 24VDC Input
- Power: 20W
- 1600lm

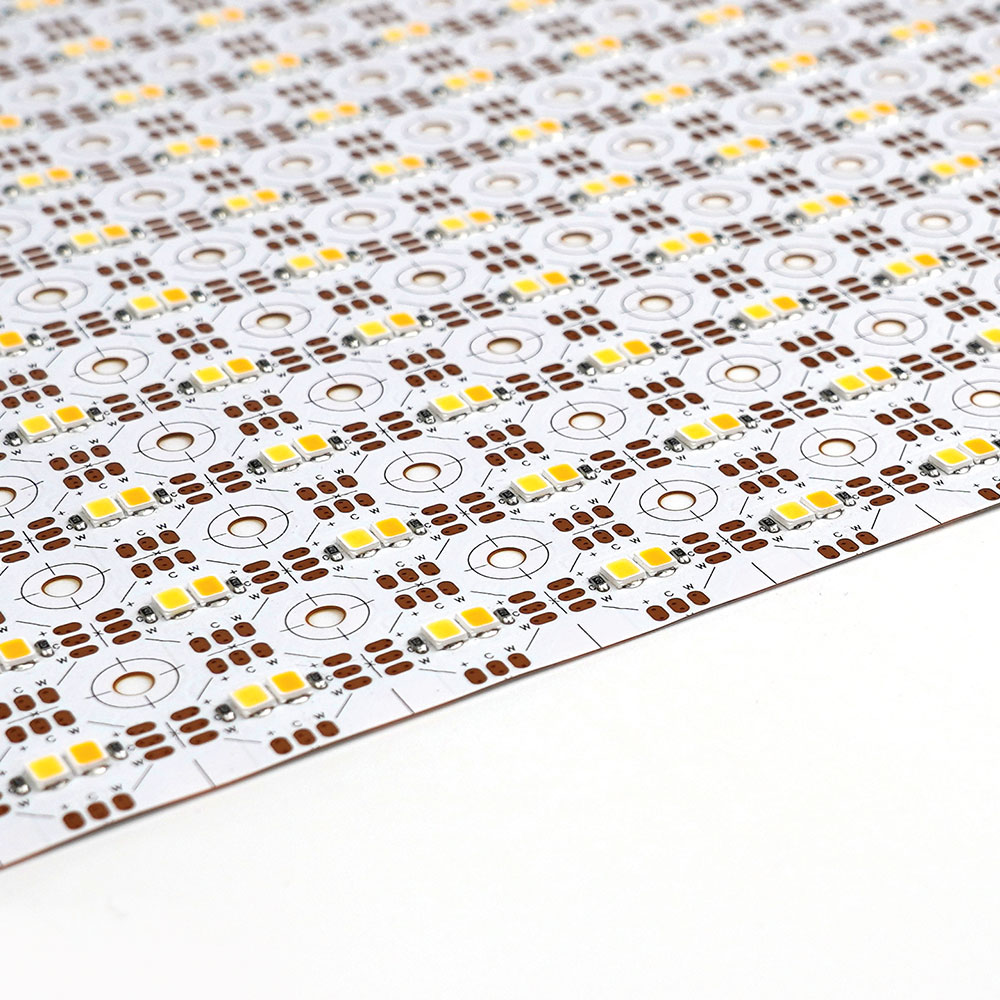

- 784 x SMD2835/sheet

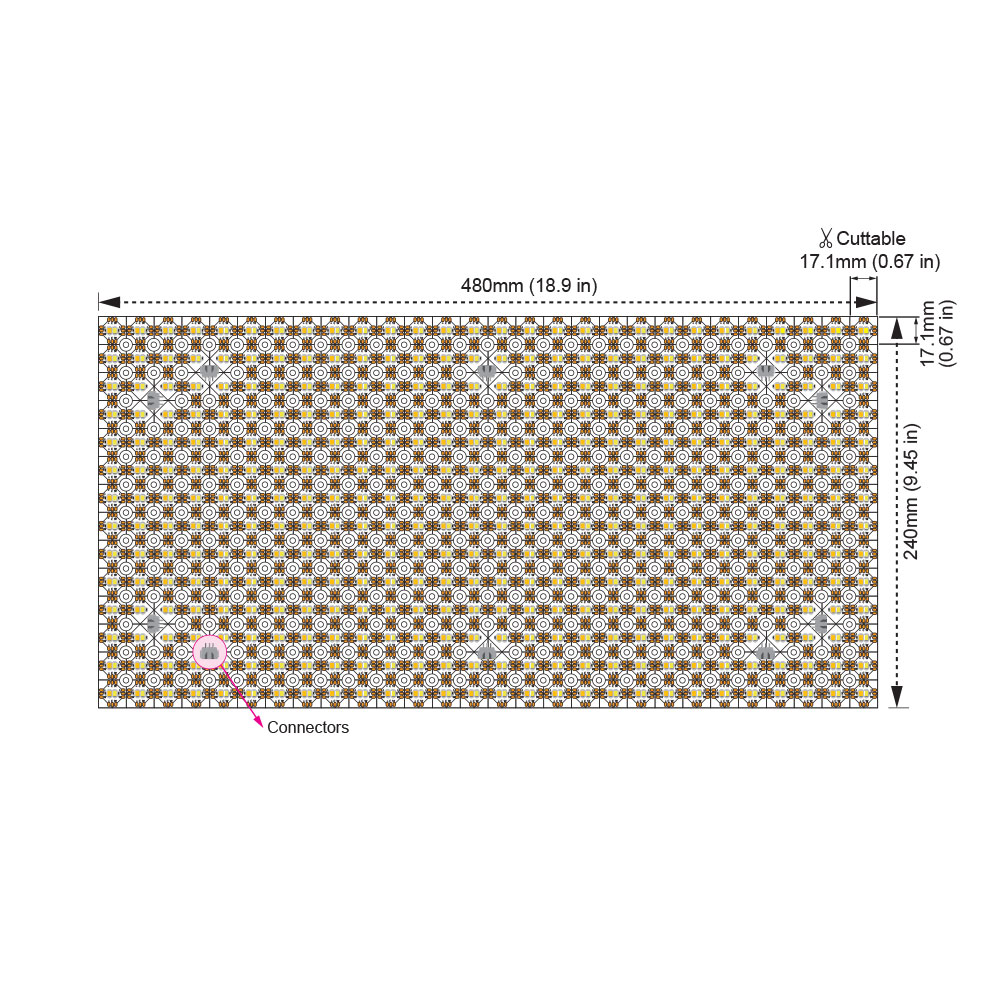

- 480mm (L) x 240mm (W)
- Tunable White (2700K – 6000K)
- CRI > 90
- Dry Location
- Class 2

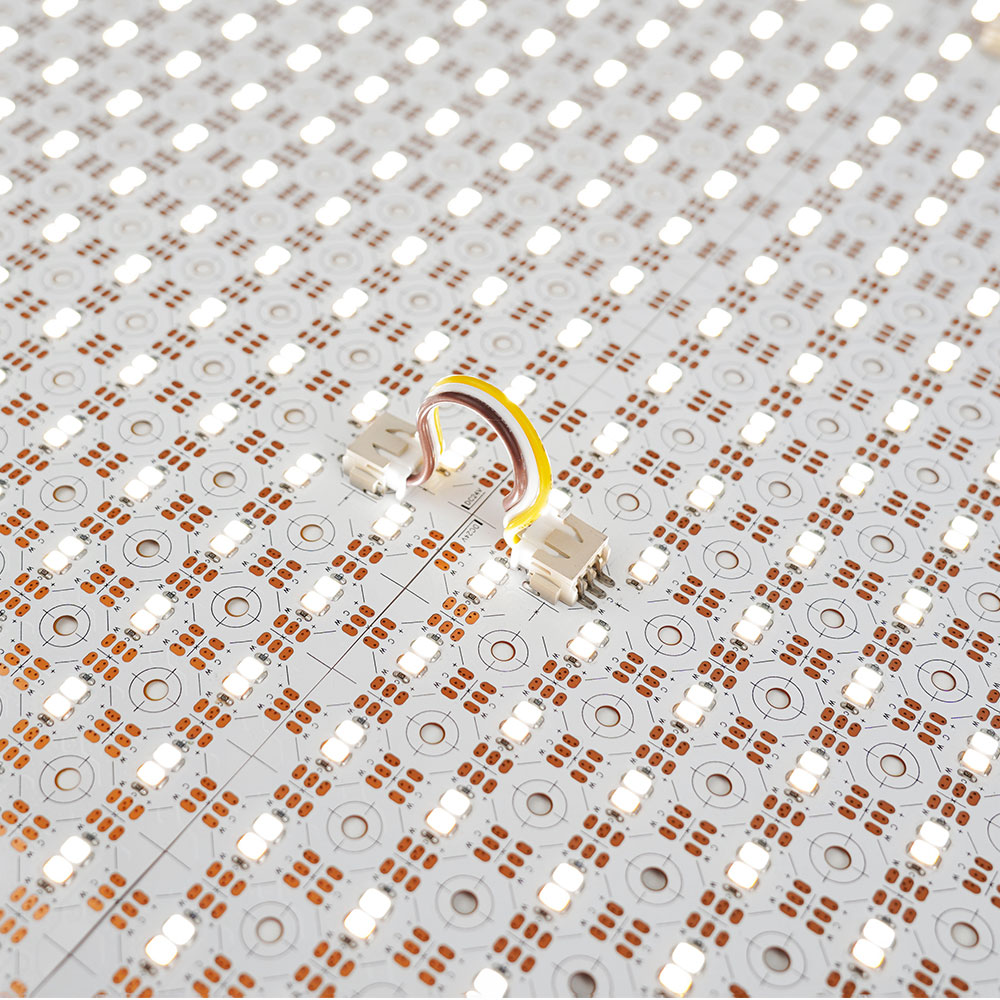

Available Connectors:
- CL-LSH-3P-BBW6 ~ Double head connector with 6cm wire, 20Awg, 3-pin
- CL-LSH-3P-BBW30 ~ Double head connector with 30cm wire, 20Awg, 3-pin
- CL-LSH-3P-XBW30 ~ Single head connector with 30cm wire, 20Awg, 3-pin
| Power | |
|---|---|
| Lumen | |
| CCT | |
| Dimension | 480x240mm |
