CL-ALU-1217

Surface Mounted Baseboard aluminum profile 10015

• with PC cover
• 10ft
• Base Outer Width: 100m
• Height: 15mm
• Strip Light Housing Width: 12mm

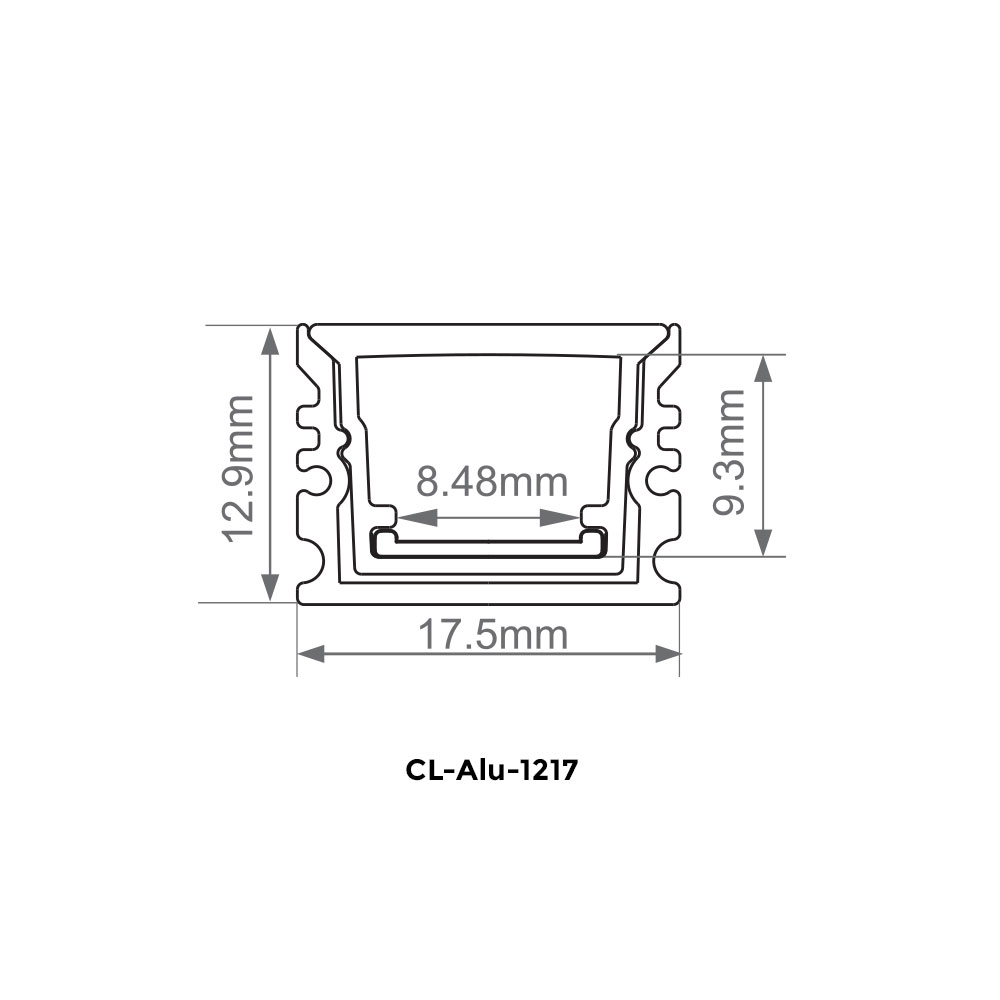

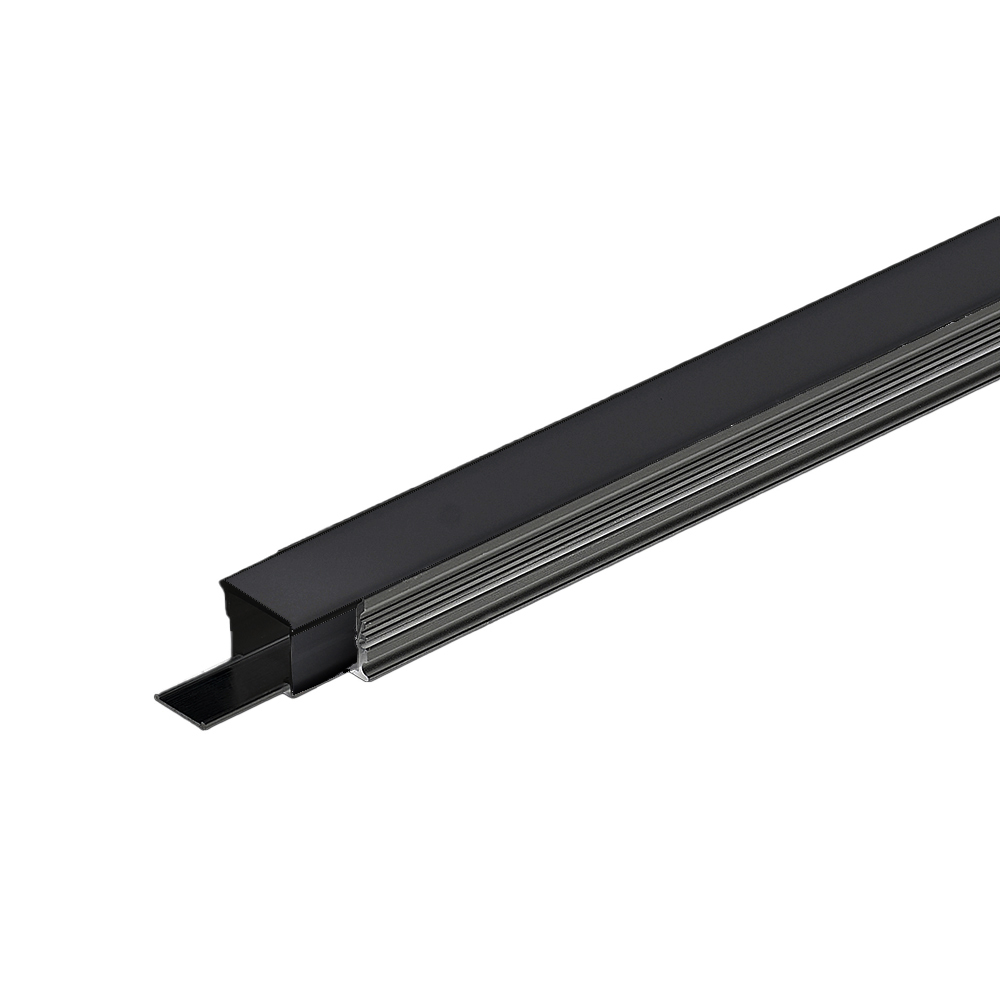

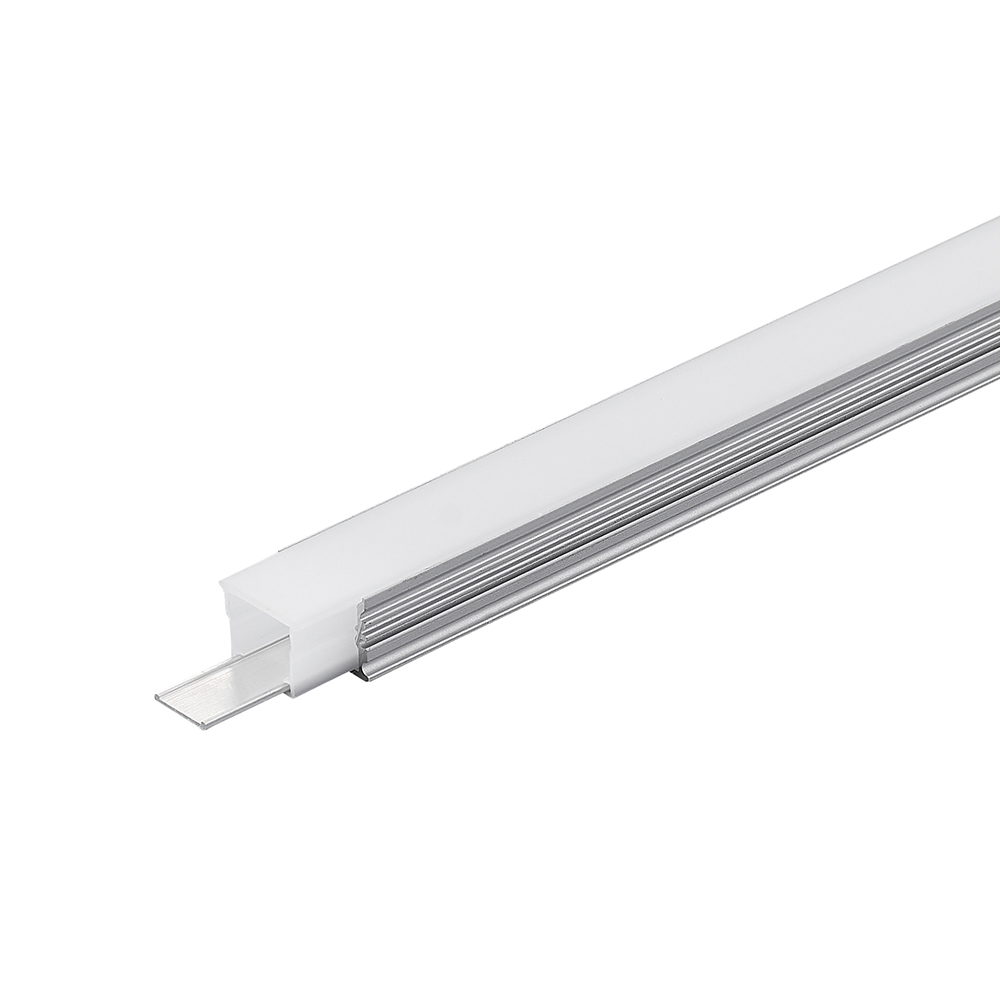

IP Rated Aluminum Profile ALU-1217A

• Available in Silver & Black body with lip
• Comes with White or Black PC Cover
• 8ft
• Suitable for outdoor and indoor
• Base Outer Width: 17.5mm
• Base Inner Width: 8.48mm
• Height: 12.9mm
• Strip Light Tray to Diffuser Height: 9.3mm
• Face Outer Width: 25mm

Recessed Aluminum Profile ALU-510A

• Comes with 2 end caps and PC cover
• Available in Silver and Black
• Base Outer Width: 13.4mm
• Base Inner Width: 10.39mm
• Face Outer Width: 17.6mm
• Height: 7mm

Trimless recessed aluminum profile 5515

• After Drywall
• With 2 Endcaps & PC Cover
• 10ft
• Color: Silver or Black
• Base Outer Width: 15mm
• Base Inner Width: 12.5mm
• Height: 15mm
• Face Outer Width: 56mm

Trimless recessed aluminum profile 5515A

• Before Drywall
• With 2 Endcaps & PC Cover
• 10ft
• Color: Silver or Black
• Base Outer Width: 15mm
• Base Inner Width: 12.6mm
• Height: 15mm
• Face Outer Width: 56mm
