General Products, Power Supplies

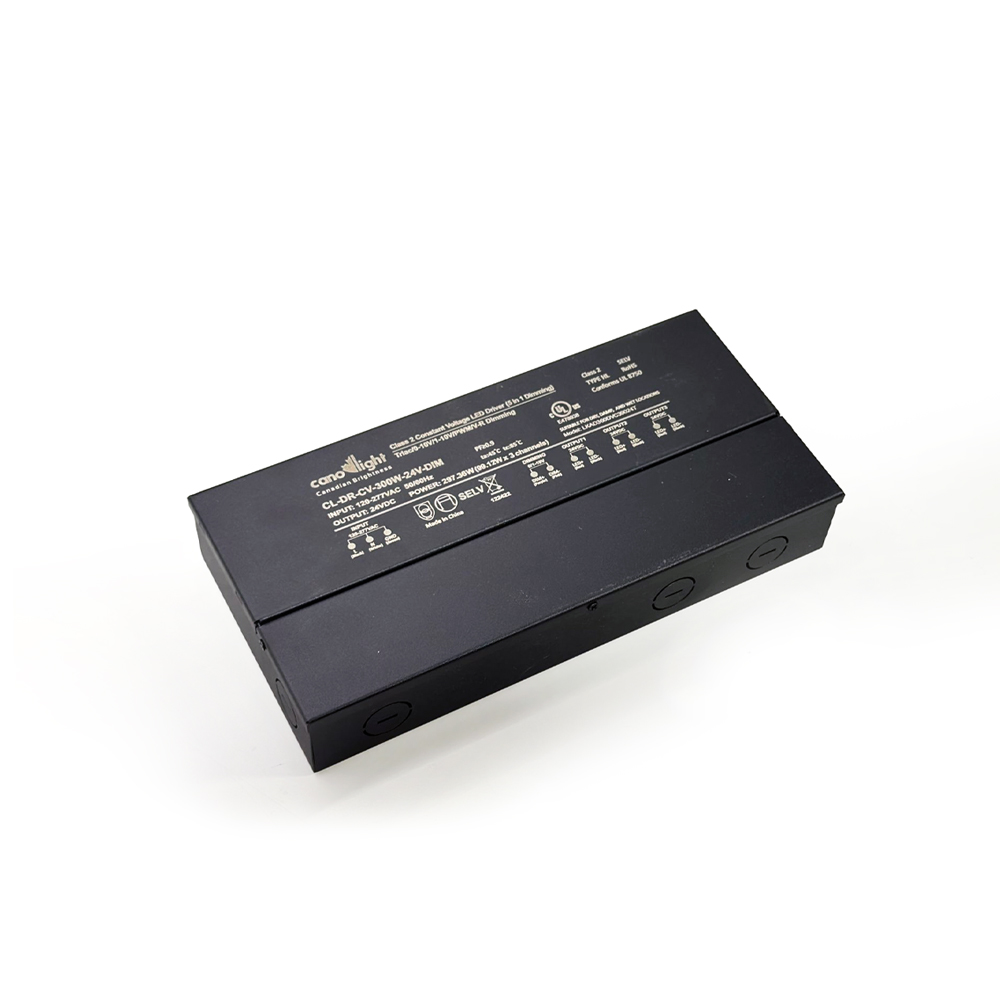

CL-DR-CV-300W-24V-DIM
Class 2 Constant Voltage LED Driver
- 297.36W (3 x 99.12W) 12.39A Per Channel
- Minimum Load: 25W
- 120-277VAC Input
- 24VDC Output
- Triac Dimmable
- PF 0.90
- Overload, thermal, and short circuit protection
- cETL certified
- Complies with UL8750
| Power | |
|---|---|
| IN Voltage | 120-277 VAC, 50/60Hz |
| OUT Voltage | 24 VDC |
| OUT Current | 12.39A Per Channel |
| DIM | 5 in 1 Dimmable |
